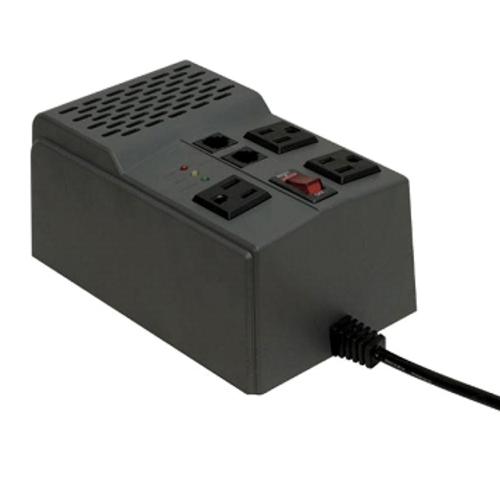

A Series  |Automatic Voltage Regulator (AVR)|A Series

A Series


A-600 / A-1000 / A-1500 / A-2000

Code A_ARV

CTR 3459







Specification

Model No.



A-600



A-1000



A-1500



A-2000









Capacity

600VA

1000VA

1500VA

2000VA

AC Input

Volt. Regulation

110V 120V           /  220V 240V

Voltage range

85V – 135V95V – 145V  /  170V – 270V 190V – 290V

Frequency

50Hz or 60Hz

AC Output

Volt. Regulation

110V 120V            /  220V 240V

Voltage

100V– 120V 110V – 130V /  200V– 240V 220V– 260V

Frequency

50Hz or 60Hz

Response time

Within 0.1sec. against 10% Input voltage deviation

Waveform distortion

Pure Sine-wave, ( Same as input waveform)

Protection

Over/Under Volt. At IP

Boost /Buck at fixed ration

Short circuit & Overload

(1). >130% overload with 1 minute delay.

(2). Breaker auto cut off.

High / Low Volt. (No Output )

High110V120V150V220V240V– 300V

Low110V120V– 75V220V240V– 150V

Lighting / Surge

Lighting Yes  /  SurgeYes

Network cable surge suppression

RJ45/RJ11 Connector Surge Protection



LED Indicator



GreenAC normal

YellowBuck or Boost

RedHigh / Low voltage protection

Environment

Temperature

-10 - +40

Humidity

0 - +90 at non condensing

Audible noise

<45dB at 1 Meter

DIMENSION  L x W x H(mm)

185*114*85

185*114*85

185*114*85

185*114*85

Net weight

1.4kgs

1.6kgs

2.4kgs

2.8kgs
